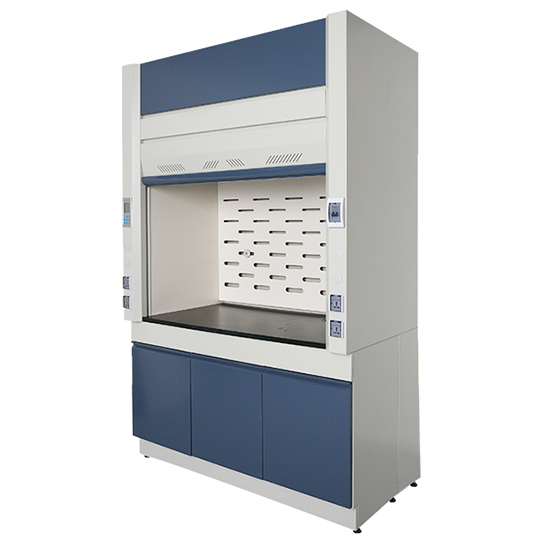

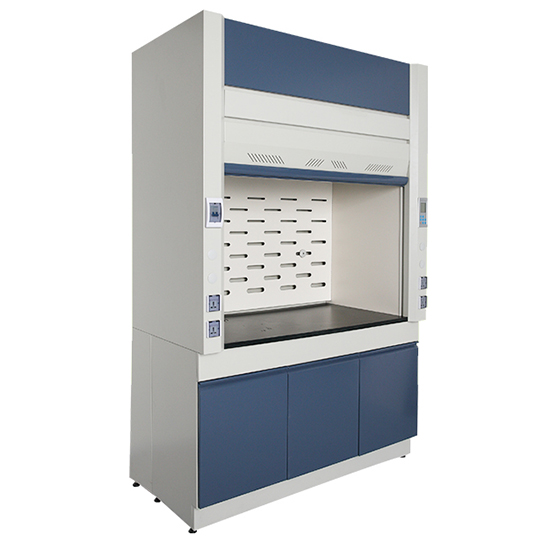

Chemical Resistant All Steel Fume Hood

Name:	Chemical Resistant All Steel Fume Hood

Standrad Size: (W*D*H: mm)
1200*800*2350
1500*800*2350
1800*800*2350

Other material for choice:
stainless steel, steel and wood, PP, FRP

Product Description

1.Casework: 1.2mm thickness of cold-rolled steel plate, after acid washing, phosphide andelectrophoresis, sprayed with good quality anti-corrosion static coating.

2.Inside Lining: 4mm thickness of Compact.

3.Worktop: 12.7mm chemical-resistant laminate, install with a hurdle to prevent spillage of liquid.

4.Sash: 6mm of tempered glass.

5.Sash Handle: 2mm Cold-rolled steel powered with epoxy coating.

6.Illumination: with not less than 300 Lux 30W fluorescent lamp set.

7.Cupsink: Oval shaped PP Cupsink

8.Water Tap: Molded in one piece copper water tap, epoxy powder coating surface with a ceramic valve.

9.Exhausting Duct: Anti-corrosion Fiberglass duct.

10.Technical specification: Noise: less than 60db (International standard)

11.Face velocity: 0.5m/s

12.Function: With an intelligent automatic delay protection device to exhaust residual corrosion air completely and prolong the service time of fume hood.

Optional accessories	Worktop	Phenolic resin worktop
		Epoxy resin worktop
		Ceramic worktop
		Stainless steel worktop
		Tempered worktop
	Movable base cabinet
	PP cup sink (embedded in the worktop)
	Fan
	Wind valve
	Water valve
	Gas valve
	Compressed air valve
